加工专用机自动化生产线

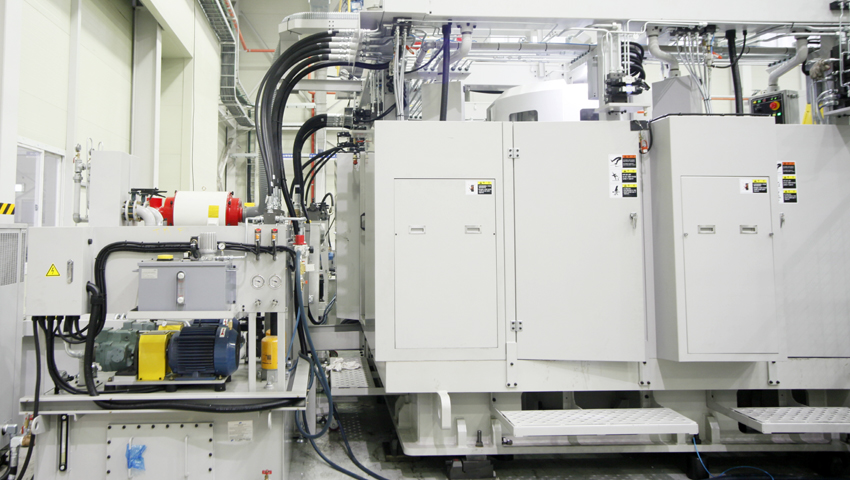

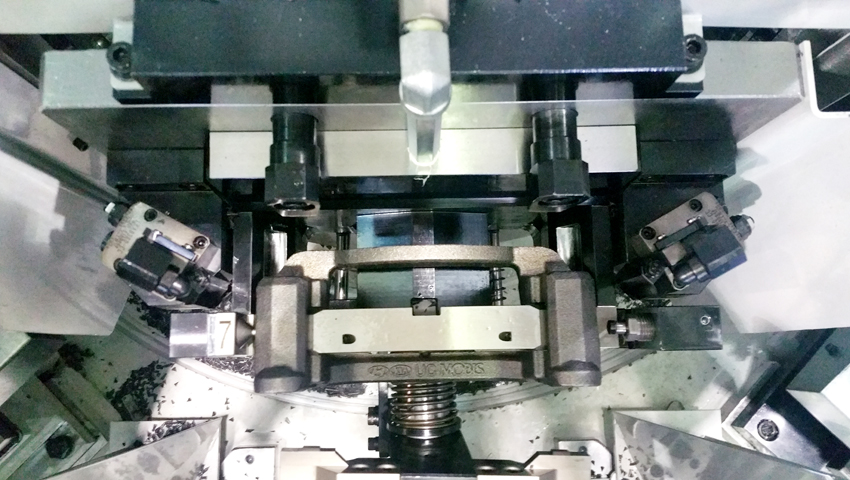

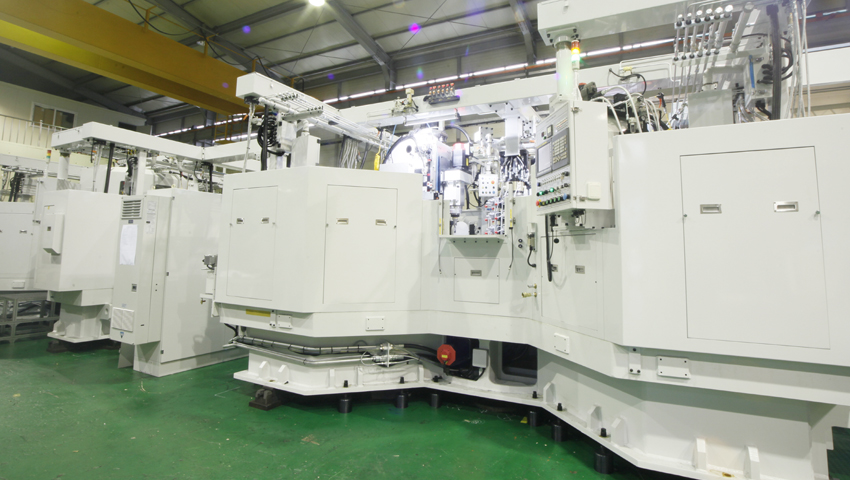

4Hole Processing ROTARY INDEX MACHINE
特征
- 实现更快的加工周期 (Torque Member 基准 20sec/EA)
- SPINDLE HEAD 2轴及 FEED UNIT 1轴为放射型由7SET构成
- 各SET单独控制
- NC INDEX 的使用提高了精密度
- JIG BASE 的标准化使JIG的交替更加容易
- NC 体系的使用使程序的变更容易且操作简便
一般规格
| 分类 | 项目 | 规格 |
| Feed (2~8-ST) |
Unit Ass’y | GEM-FD02 |
| Servo Motor | aiF22/4000 4M ST (4kW) | |
| Ball Screw | FDM-E-S-40×10R×6-6+1014L-C5 | |
| Coupling | A3-20 | |
| Slide Type |
2MRB45-922.5-C2-15-15-G1V3-SO-2ZCN-2ASM-MRS (Roller Guide Type) |
|
| Index | Index Type | Servo Index |
|
Spindle (2~5-ST) |
Head | GEM-SP60 |
| Bearing | 7012C-P4 (Φ60) NN3010K-P4 (Φ50) | |
| Servo Motor | aiF 3/10000 (3.7kW) | |
| 驱动 Belt | 510 H150 | |
| Max. RPM | 3000 RPM | |
| 可变 Pitch Stroke | Min.125mm Max.200mm | |
|
Spindle (6-ST) |
Head | GEM-FH70 |
| Bearing | NN3014KTN (Φ70) | |
| 234414TN9 (Φ70) | ||
| NN3012KTN (Φ60) | ||
| Servo Motor | aiF 3/10000 (3.7kW) | |
| 驱动 Belt | 630 H100 | |
| Max. RPM | 1500 RPM | |
| 可变 Pitch Stroke | Min.125mm Max.200mm | |
|
Groove (6-ST) |
Head | PKE100-17-101 QA |
| Servo Motor | A4/4000i (1.4kW) | |
| Ball screw | FDM-E-S25×5R×3-4 | |
|
Spindle (7,8-ST) |
Head | Special (2-Spindle) |
| Bearing | NN3010K (Φ50) | |
| 50TAC20X+L (Φ50) | ||
| NN3008K (Φ40) | ||
| Servo Motor | A3/10000i (3.7kW) | |
| 驱动 Belt | 250 S8M | |
| Max. RPM | 6000RPM | |
| 可变 Pitch Stroke | Min.98mm Max.140mm |

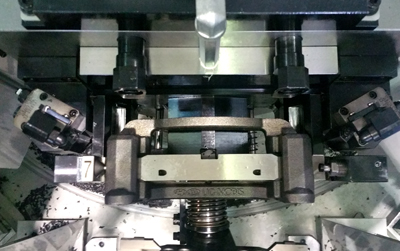

适用领域
-
