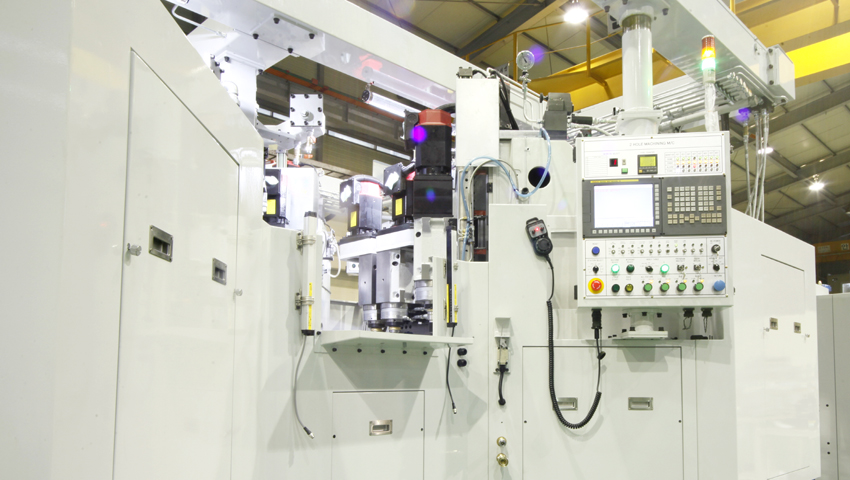

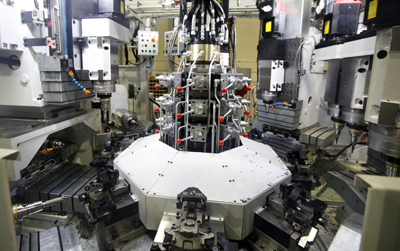

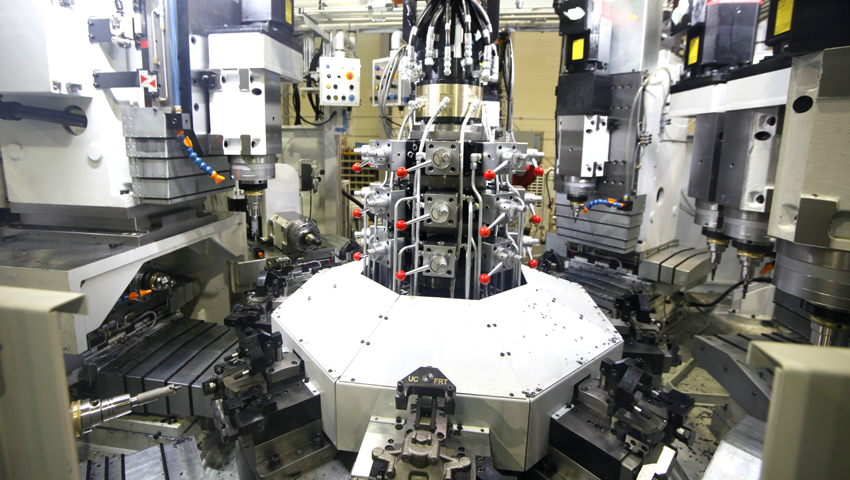

Body Port Processing ROTARY INDEX MACHINE

特征
  • 实现快速生产周期 (嵌体 (Caliper Body) 基准 22sec/EA)
  • SPINDLE HEAD 1轴及 FEED UNIT 1轴为放射型由7SET构成
  • 各SET单独控制
  • NC INDEX 的使用提高了精密度

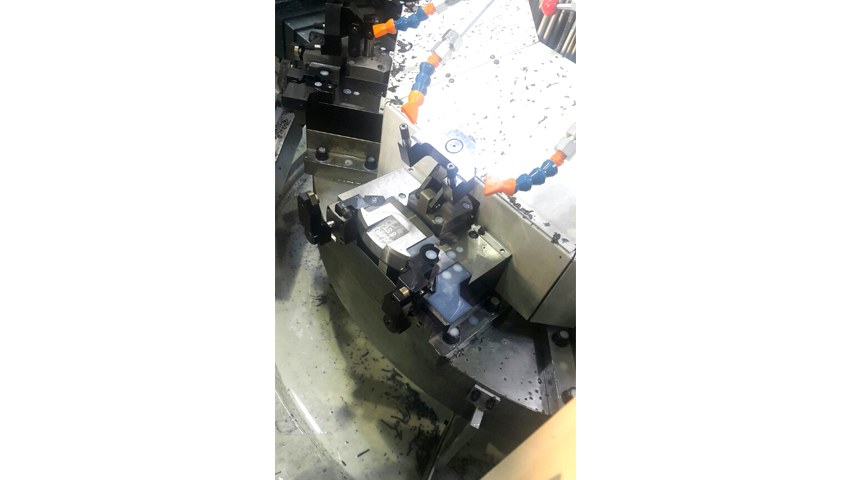

  • JIG BASE 的标准化使JIG的交替更加容易
  • NC 体系的使用使程序的变更容易且操作简便
一般规格
GEM
分类 项目 规格
Feed X 轴
(2,4-ST) 		Unit Ass’y 450-300/500-100
Servo Motor a12/3000i (3kW)
Ball Screw FEM-E-S 40-10Rx6-4+918L-C5
Coupling EDL-10SH-Ø35/Ø26
Slide Type 2MR55-D2-1017-G2V2-SO-2ZCN-2ASM-MRK
Feed Y 轴
(2,4-ST) 		Unit Ass’y 450-300/500-100
Servo Motor a12/3000i (3kW)
Ball Screw FEM-E-S40-10R×6-4+721L-C5
Coupling P35-8YU-PULLEY, 192-8YU-50 (Belt)
Slide Type 2MR55-C2-650-21.5-28.5-G2V2-SO-2ZCN-2ASM-MRK
Index Index Type Servo Index
Spindle
(2,4-ST) 		Head GEM-SP65
Bearing NN3013K (Φ65)
562013 (Φ65)
NN3011K (Φ55)
Servo Motor a2/10000i (2.2kW)
驱动 Belt 880-S8M-50
Max. RPM 2500 RPM
Feed X 轴
(3-ST) 		Unit Ass’y 450-300/500-100
Servo Motor a12/3000i (3kW)
Ball Screw FEM-E-S 40-10R×6-4+ 918L-C5
Coupling EDL-10SH-Ø35/Ø26
Slide Type 2MR55-D2-1017-G2V2-SO-2ZCN-2ASM-MRK
Feed Y 轴
(3-ST) 		Unit Ass’y 450-300/500-100
Servo Motor a12/3000i (3kW)
Ball Screw FEM-E-S 40-10R×6-4+ 721L-C5
Coupling P35-8YU-PULLEY,192-8YU-50 (BELT)
Slide Type 2MR55-C2-650-21.5-28.5-G2V2-SO-2ZCN-2ASM-MRK
Feed Z 轴
(3-ST) 		Unit Ass’y VF-420/200
Servo Motor A22/4000i (4kW)
Ball Screw FDM-E-S 50-10R×6-6+ 670L-C5
Coupling EUL-20– Ø45/Ø28
Slide Type 2-MR55-D2-972-G2V2-SO-2ZCN-2ASM-MRK
Spindle X 轴
(3-ST) 		Head GEM-SP65
Bearing NN3013K (Φ65)
562013 (Φ65)
NN3011K (Φ55)
Servo Motor a1.5/10000i (1.5kW)
驱动 Belt 880-S8M-50
Max. RPM 2,500RPM
Spindle Y 轴
(3-ST) 		Head GEM-SP65
Bearing NN3013K(Φ65)
562013(Φ65)
NN3011K(Φ55)
Servo Motor a2/10000i (2.2kW)
驱动 Belt 632-S8M-40
Coupling EUL-20-D45/D28
Max. RPM 2,500RPM
4,300RPM
Feed X 轴
(5,7-ST) 		Unit Ass’y VF-420/200
Servo Motor aiF22/4000 4M ST (4kW)
Ball Screw FDM-E-S-40x10Rx6-6+1044L-C5
Coupling A3-20
Slide Type 2MR55-D2-940-G2V3-SO-2ZCN-2ASM-MRK
Feed Z 轴
(5,7-ST) 		Unit Ass’y VF-420/200
Servo Motor aiF22/4000 4M ST (4kW)
Ball Screw FDM-E-S 50-10R×6-6+ 670L-C5
Coupling EUL- 20 – Ø45/Ø28
Slide Type 2-MR55-D2-972-G2V2-SO-2ZCN-2ASM-MRK
Feed X 轴
(8-ST) 		Unit Ass’y GEM-FD01
Servo Motor aiF22/4000 4M ST (4kW)
Ball Screw FDM-E-S-40×10R×6-6+1044L-C5
Coupling A3-20
Slide Type 2MR55-D2-940-G2V3-SO-2ZCN-2ASM-MRK
Feed Z 轴
(8-ST) 		Unit Ass’y VF-420/200
Servo Motor aiF22/4000 4M ST (4kW)
Ball Screw FDM-E-S 50-10R×6-6+670L-C5
Coupling EUL- 20 – Ø45/Ø28
Slide Type 2-MR55-D2-972-G2V2-SO-2ZCN-2ASM-MRK
Spindle
(5,8ST) 		Head GEM-SP65
Bearing NN3013K (Φ65)
562013 (Φ65)
NN3011K (Φ55)
Servo Motor a2/10000i (2.2kW)
驱动 Belt 632-S8M-40
Coupling
Max. RPM 2,500RPM
Spindle
(7ST) 		Head GEM-SP65
Bearing NN3013K (Φ65)
562013 (Φ65)
NN3011K (Φ55)
Servo Motor a2/10000i (2.2kW)
驱动 Belt 632-S8M-40
Max. RPM 2,500RPM
Feed X 轴
(6-ST) 		Unit Ass’y 450-300/500-100
Servo Motor 12/3000i A10 ST (3.0kW)
Ball Screw FEM-E-S 40-10R×6-4+918L-C5
Coupling EDL-10SH-Ø35/Ø26
Slide Type 2MR55-D2-1017-G2V2-SO-2ZCN-2ASM-MRK
Feed Y 轴
(6-ST) 		Unit Ass’y 450-300/500-100
Servo Motor 12/3000i A10 ST (3.0kW)
Ball Screw FEM-E-S 40-10R×6-4+721L-C5
Coupling P35-8YU-PULLEY, 192-8YU-50 (Belt)
Slide Type 2MR55-C2-650-21.5-28.5-G2V2-SO-2ZCN-2ASM-MRK
Feed Z 轴
(6-ST) 		Unit Ass’y VF-420/200
Servo Motor A22/4000i (4kW)
Ball Screw FDM-E-S 50-10R×6-6+670L-C5
Coupling EUL- 20 – Ø45/Ø28
Slide Type 2-MR55-D2-972-G2V2-SO-2ZCN-2ASM-MRK
Spindle
(6-ST) 		Head GEM-SP65
Bearing NN3013K (Φ65)
562013 (Φ65)
NN3011K (Φ55)
Servo Motor a2/10000i (2.2kW)
驱动 Belt -
Coupling EUL-20-D45/D28
Max. RPM 2,500RPM
