Automation Lines of Machining Special Purpose Machines

R-Cut MILLING MACHINE

Features
  • Achieve fast cycle times (A brake Caliper Body per 22 sec)
  • Configured 2 axises spindle head and 1 axis feed unit
  • Individual controlled spindle head
  • Robust structural design as one boy type of spindle and Gear Box

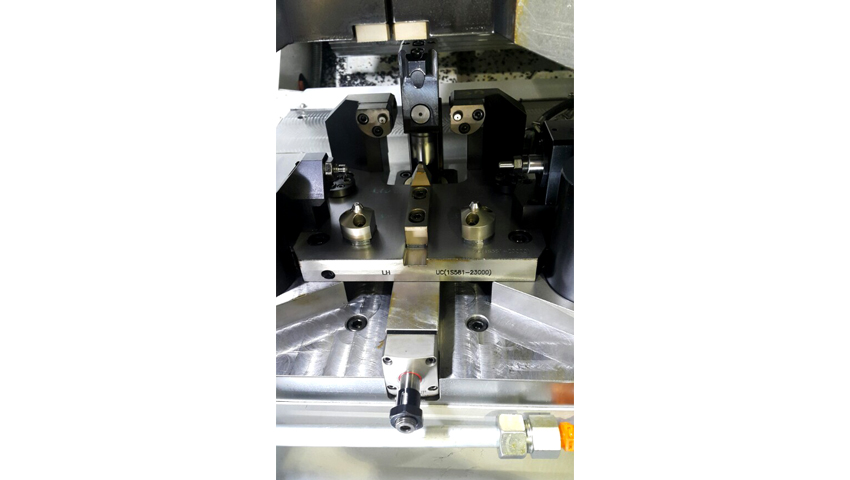

  • Easy to replace jig due to jig base standardization
  • Simplified operation and easy program change due to applied NC system
General Specification
GEM
Sector Category Standard
Feed Unit Ass’y GEM-100/300
Servo Motor A100/2500isB TA (11kW)
Ball Screw 1512-7-4013+1136 (Φ8010-T7)
Coupling A3-35/55S-62 (Disc Type)
Balance Cylinder CJT70-FA63C400B-ABD
Slide Type Turcite (GIB Controllable Type)
Spindle Head GEM14.MSP18.   5.00.Z
Type Helical Gear (4set) gear ratio 6.1:1
Bearing (Standard) NN3028ASK.M.SP (Φ140)
140BTR10SDB.P4 (Φ140)
NN3024ASK.M.SP (Φ120)
Bearing (Main Axis) 32216 (Φ80)
32214 (Φ70)
32218 (Φ90)
Servo Motor Ail 18/7000 FL MI (18.5kW)
Max. RPM 450RPM

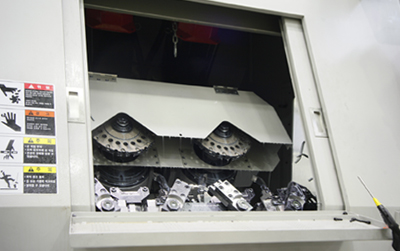

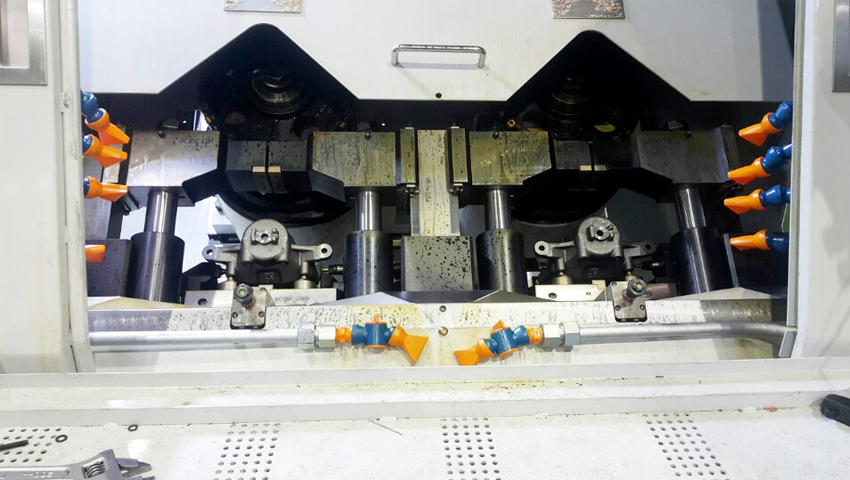

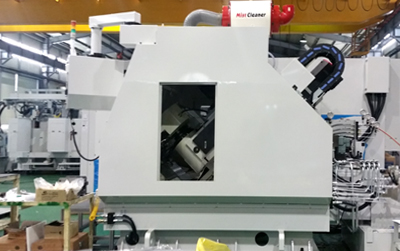

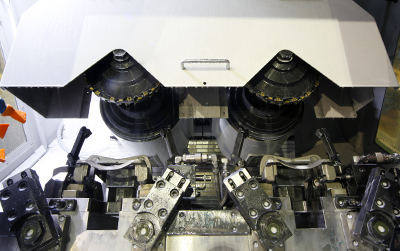

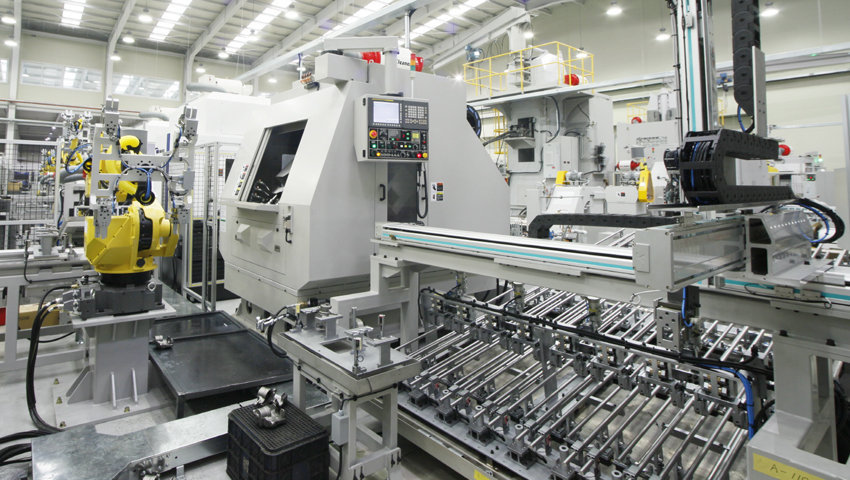

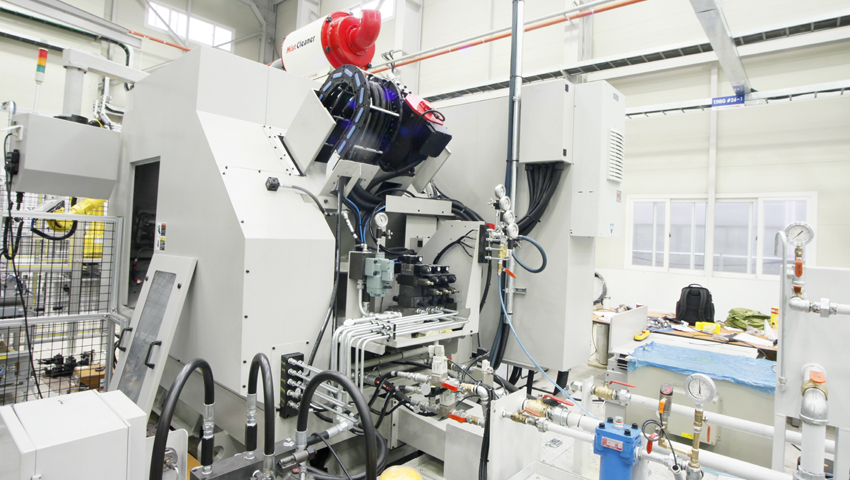

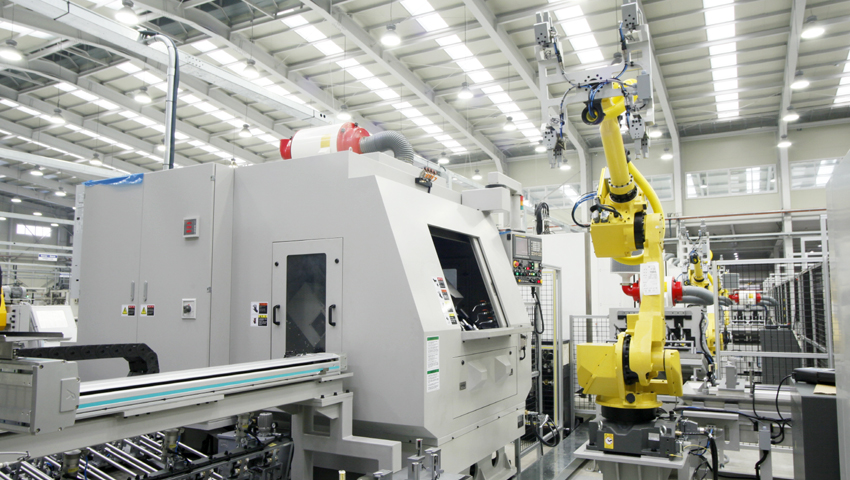

Application
