Automation Lines of Machining Special Purpose Machines

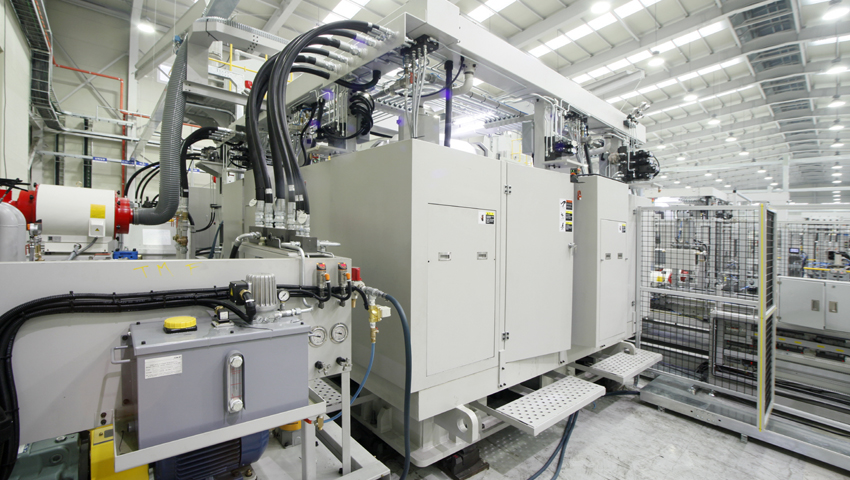

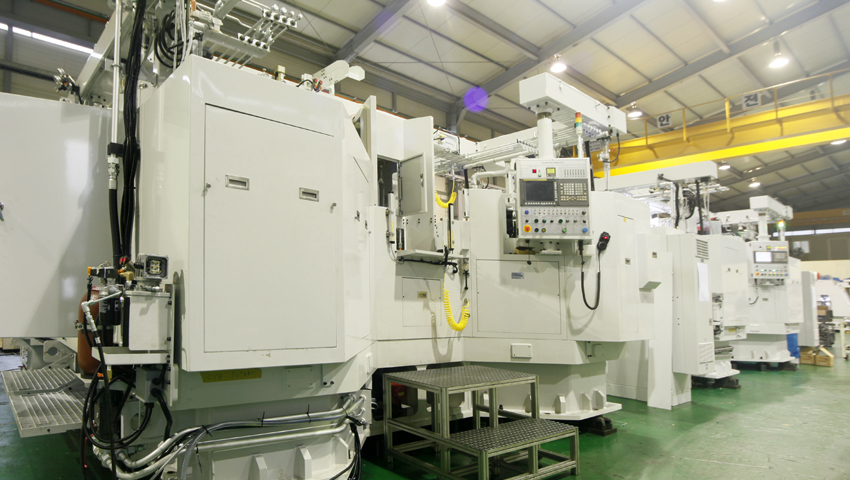

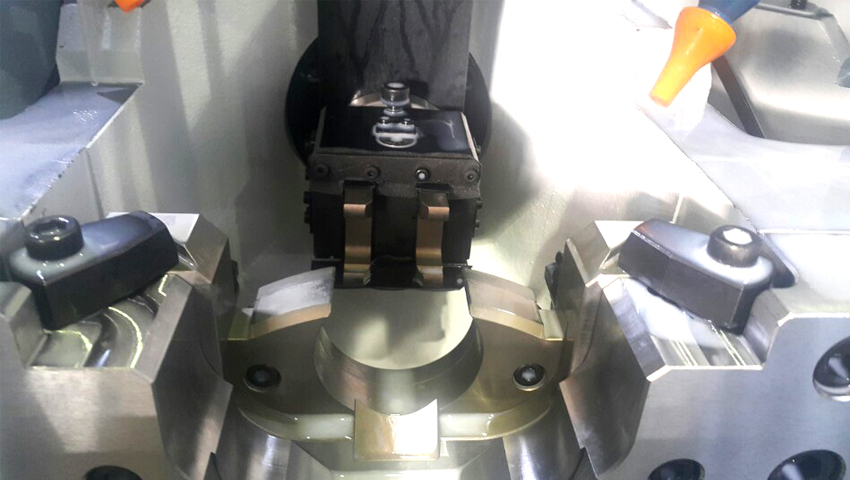

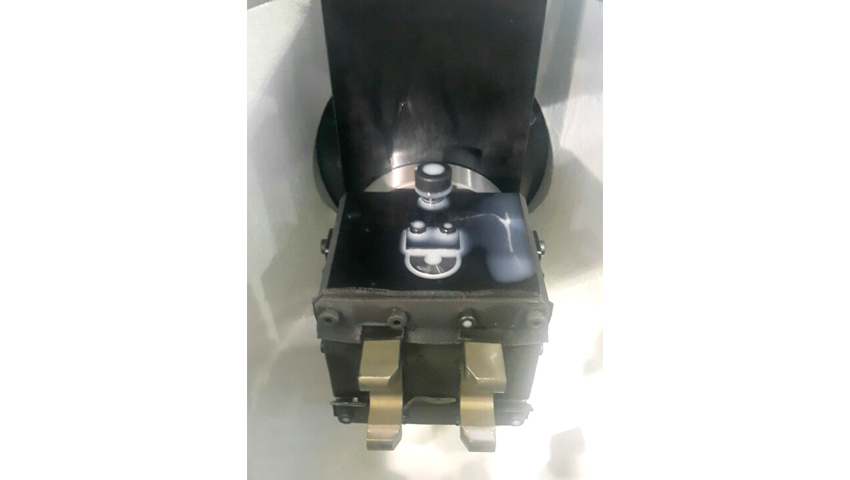

Body Bore Processing ROTARY INDEX MACHINE

Features

achieve fast cycle times (A brake Caliper Body per 22 sec)
Configured 1 axis spindle head and 1 axis feed unit with 7sets radial direcation
Individual control each set
Improved accuracy due to applied NC index
Easy to replace jig due to jig base standardization
Simplified operation and easy program change due to applied NC system

General Specification

GEM
Sector	Category	Standard
Feed (2,3,4-ST)	Unit Ass’y	GEM-FD01
	Servo Motor	Aif 22/4000 4M ST (4kW)
	Ball Screw	FDM-E-S-40×10R×6-6+1044L-C5
	Coupling	A3-20
	Slide Type	2MR55-D2-940-G2V3-SO-2ZCN-2ASM-MRK (Roller Guider Type)
Index	Index Type	Servo Index
Spindle (2,3,4-ST)	Head	GEM-SP100
	Bearing	NN3020K (Φ100)
		100 BT 10×-P4 (Φ100)
		NN3018K (Φ90)
	Servo Motor	A8/8000i (7.5kW)
	Operation Belt	V BELT 3V
	Max. RPM	4000RPM
Feed (6-ST)	Unit Ass’y	GEM-FD01
	Servo Motor	Aif 22/4000 4M ST (4kW)
	Ball Screw	FDM-E-S-40×10R×6-6+1044L-C5
	Coupling	A3-20
	Slide Type	2MR55-D2-940-G2V3-SO-2ZCN-2ASM-MRK (Roller Guider Type)
Spindle (6-ST)	Head	GEM-SP85
	Bearing	NN3017K (Φ85)
		234417TN9 (Φ85)
		NN3015K (Φ85)
	Servo Motor	A8/8000i (7.5kW)
	Operation Belt	V BELT 3V
	Max. RPM	4000RPM
Feed (5,7,8-ST)	Unit Ass’y	GEM-FD01
	Servo Motor	Aif 22/4000 4M ST (4kW)
	Ball Screw	FDM-E-S-40×10R×6-6+1044L-C5
	Coupling	A3-20
	Slide Type	2MR55-D2-940-G2V3-SO-2ZCN-2ASM-MRK
Spindle (5,7,8-ST)	Head	GEM-FH90
	Bearing	32219J (Φ95)
		32218J (Φ90)
		7218C (Φ90)
	Servo Motor	A8/8000i (7.5kW)
	Operation Belt	V BELT 3V
	Max. RPM	2000RPM
Groove (5,7,8-st)	Head	PKE2501-30-101-SP
	Servo Motor	A8/3000i (2.0kW)
	Ball Screw	FEM-E-S 50×5R×6-6-12T5R-476.5L C5

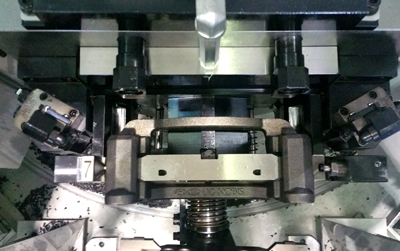

Application
